Grand Theft Auto: San Andreas Widescreen Fix adds proper widescreen support, unlocks every resolution, corrects HUD, FOV and cutscene letterboxing, and includes a range of quality-of-life improvements.
Fixes
|
|
New Options
|
|
|
|
|
|
|
|

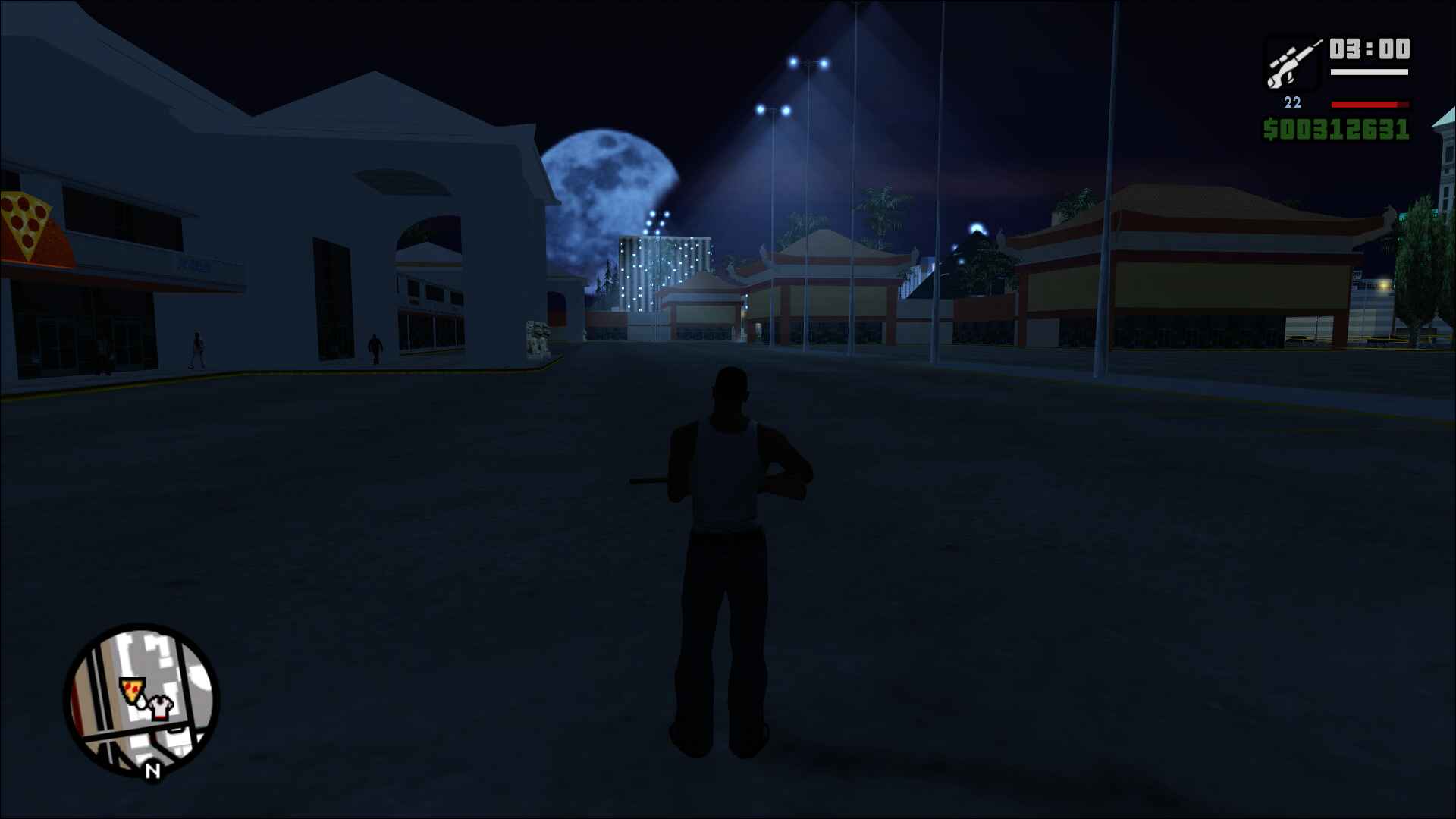

Before / After
| Before | After |
|---|---|

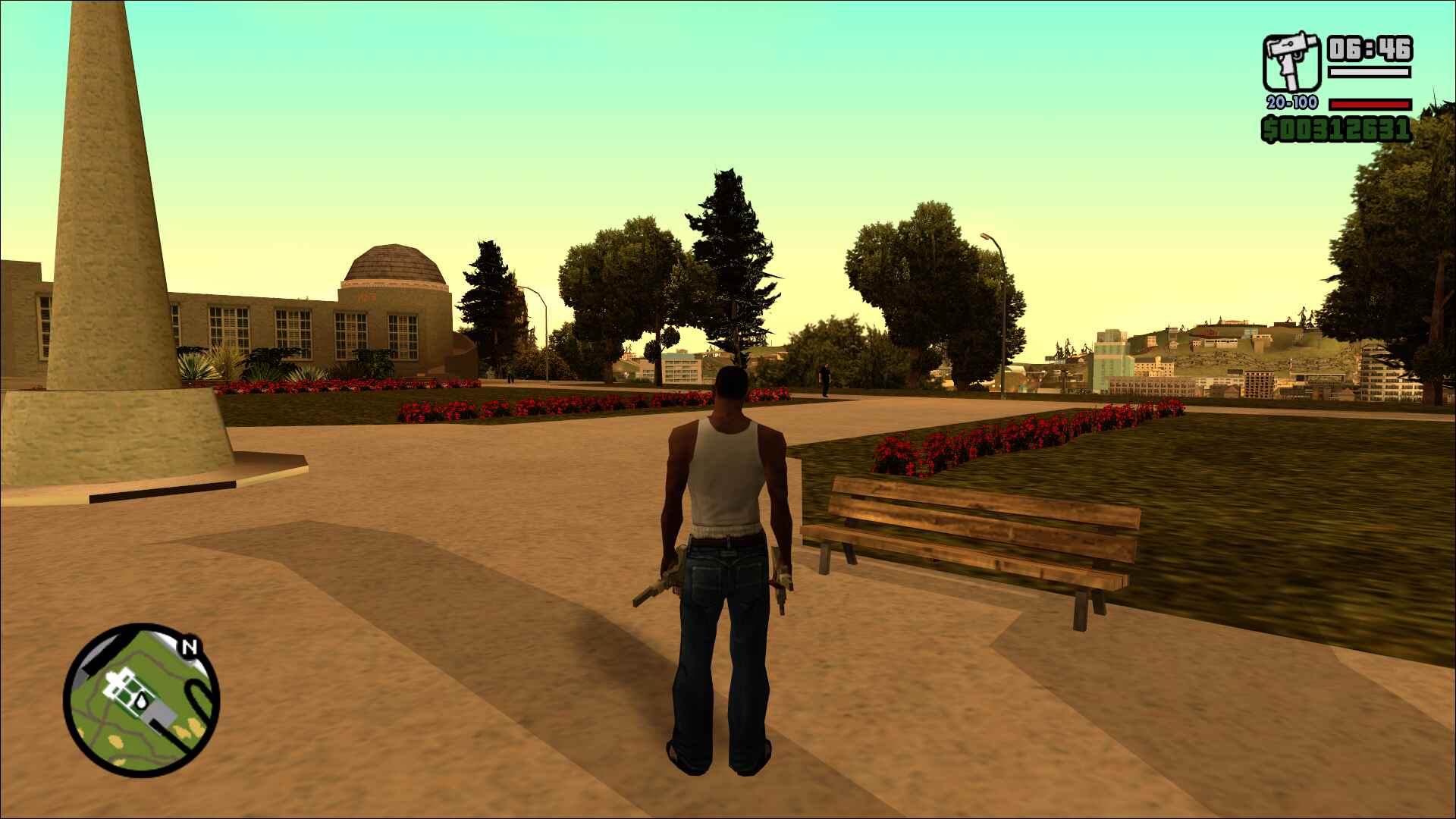

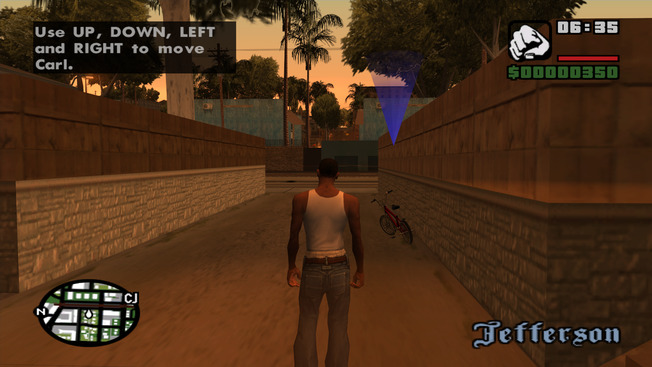

| Original 4:3 output | Correct 16:9 aspect ratio with proper HUD and FOV |

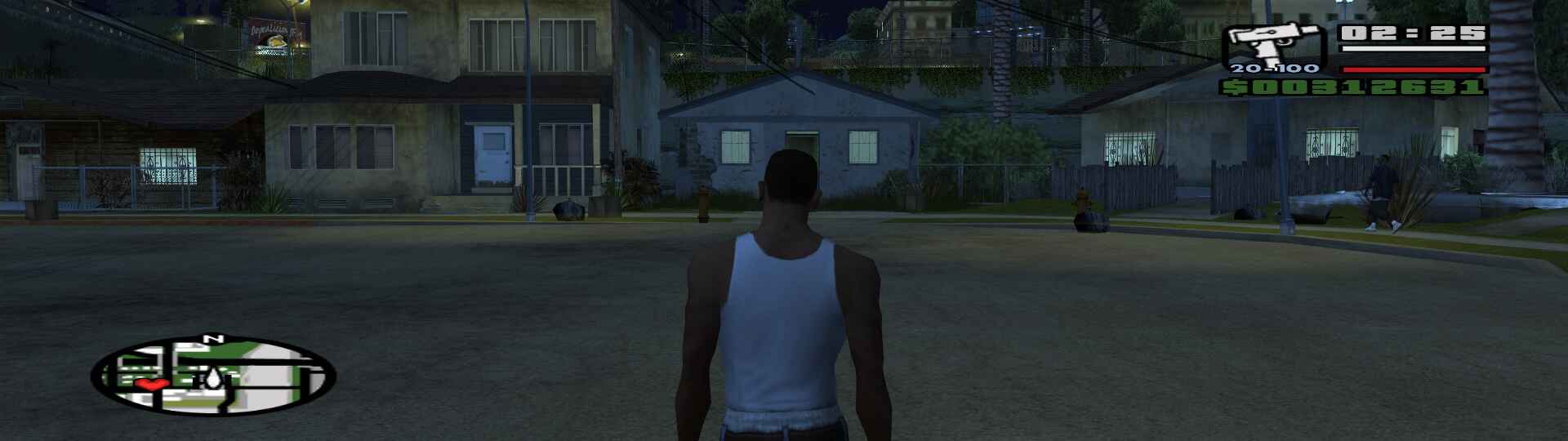

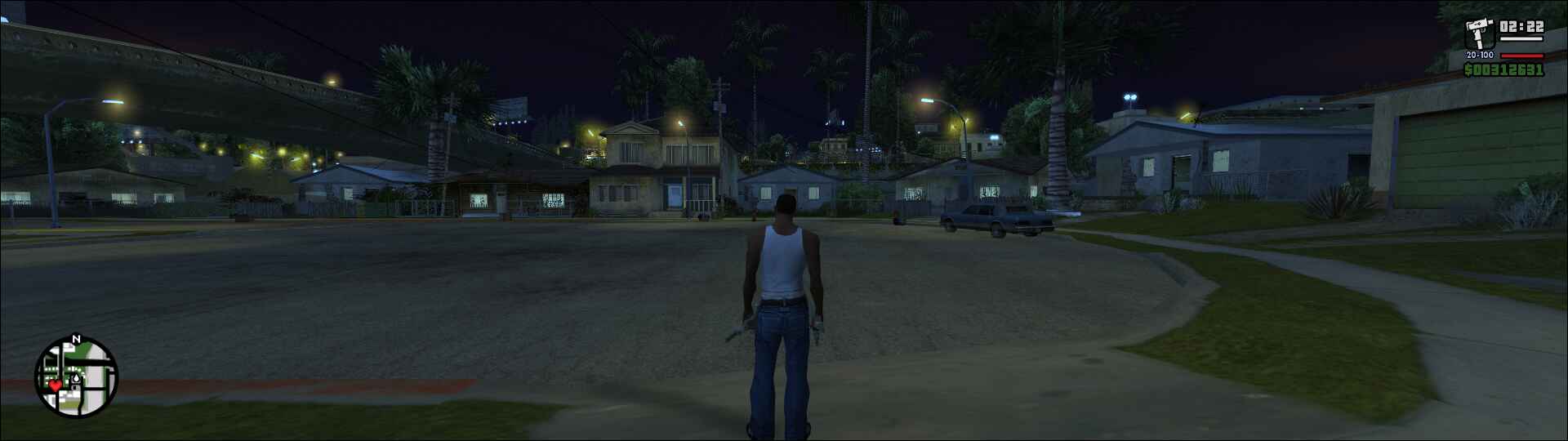

| The game would also be stretched in ultrawide | Widescreen fix makes it work with any aspect ratio |

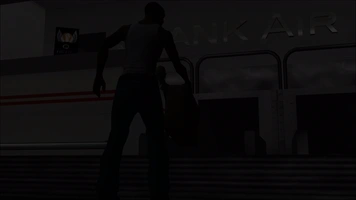

Animated cutscene borders |
|---|
Installation
- Download the
.zipfrom this release. - Extract the contents directly into the game folder - the same folder as
gta-sa.exe. - Optionally edit
GTASA.WidescreenFix.inito configure the available options. - Launch the game.
Note
Installing SilentPatch is strongly recommended - it's the perfect companion to this fix and essentially required, fixing numerous bugs, crashes and progression issues.
Warning
Some mods may not be compatible with this new release. If you run into compatibility issues, enable Legacy mode below and keep using that until the authors of those mods update their projects.
Legacy mode - click to expand
To use the previous version of the fix, place GTASA.WidescreenFixLegacy.ini next to the .asi file with the following content:
[MAIN]
; Use this option to override the game resolution (-1|0|*).
ResX = 0
ResY = 0
; Set game aspect ratio (auto|4:3|5:4|16:9|*:*).
ForceAspectRatio = auto
; Used to properly scale frontend textures, such as menu background or loading screens (auto|4:3|5:4|16:9|*:*).
FrontendAspectRatio = auto
; Disable any FOV related fixes, it's not recommended (0|1).
DontTouchFOV = 0
; Use original FOV value during cutscenes (0|1).
RestoreCutsceneFOV = 1

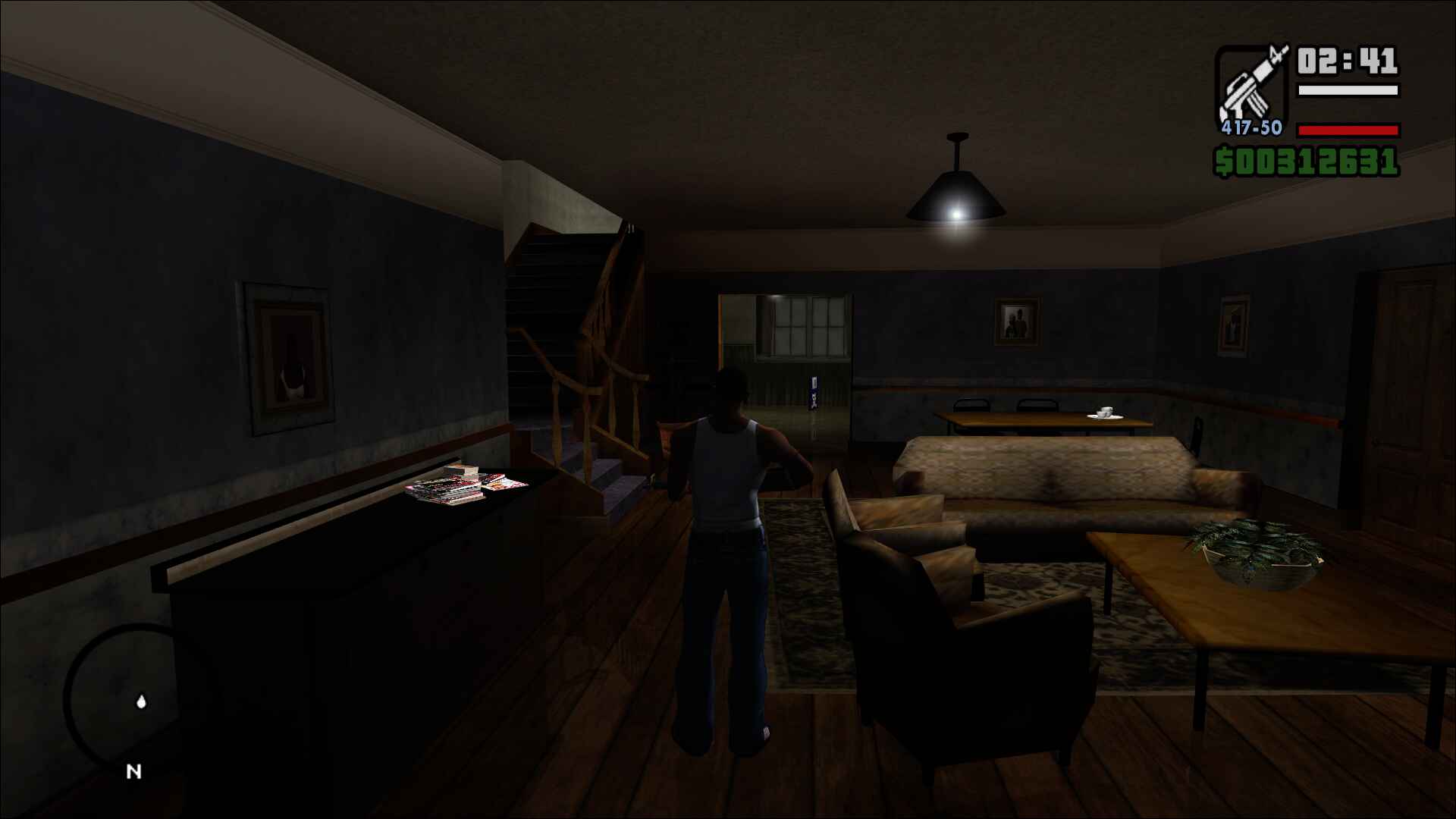

; The settings below are used to scale parts of the game UI differently.
; If set to "0.0" original values will be used.
HudWidthScale = 0.8 ; Original value is 1.0.
HudHeightScale = 0.8 ; Original value is 1.0.
RadarWidthScale = 0.82 ; Original value is 1.0.
RadarHeightScale = 0.0 ; Original value is 1.0.
SubtitlesScale = 0.0 ; Original value is 1.0.
ProportionalWeaponIcon = 0
[MISC]

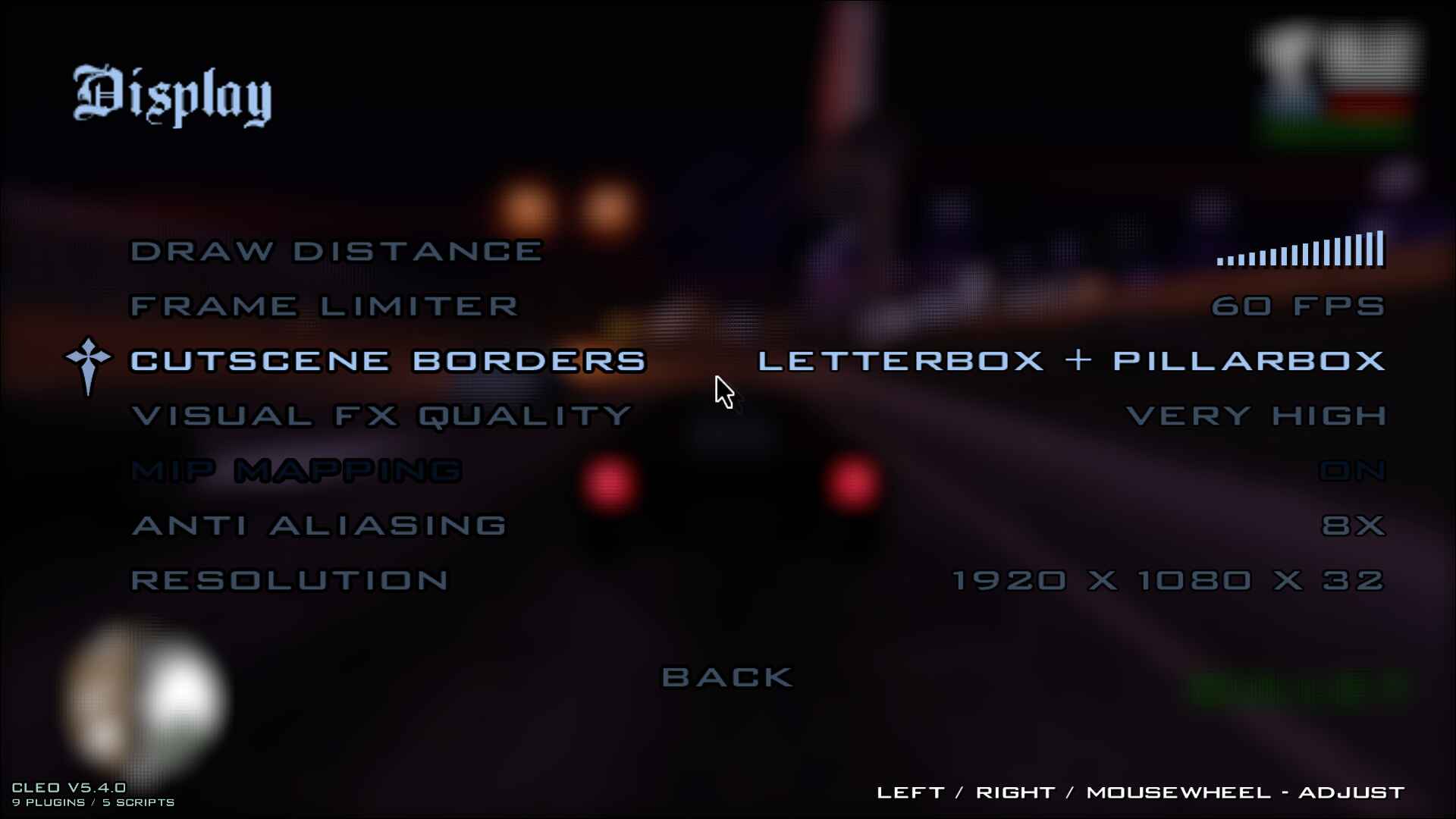

; Same as in VCS PCE, cutscene border size will be adjusted to fit your resolution. On resolutions bigger than 16:9 vertical borders will be used. Note that you can enable or disable cutscene borders via 'WIDESCREEN'/'BORDERS' option in game menu (0|1).
SmartCutsceneBorders = 1
; Game will not freeze when focus is lost (only in windowed mode).
AllowAltTabbingWithoutPausing = 0
; Drawing 1px line at top and left sides of the screen to hide antialiasing bug caused by MSAA(0|1|2). (2) creates 4 lines to make picture symmetrical.
HideAABug = 0
; Disable the small white dot that appears while aiming with some weapons (0|1).
DisableWhiteCrosshairDot = 0
; Replaces text shadow with outline (0|1|2).
ReplaceTextShadowWithOutline = 2
Non-Windows users (Proton/Wine) - click to expand
You need to tell Wine explicitly to use the correct DLL overrides required for this plugin. There's more than one way to achieve it.
Method 1: WINEDLLOVERRIDES variable lets you temporarily specify DLL overrides. It can be used from a command line as well as in the Steam launcher. In the case of the command line, simply prepend the usual start command with:
WINEDLLOVERRIDES="vorbisFile=n,b"
For Steam, head to the game's properties and set LAUNCH OPTIONS to WINEDLLOVERRIDES="vorbisFile=n,b" %command%.
Method 2: Use winecfg tool to make a permanent override for a specific Wine prefix. In case of Proton, Steam creates the Wine prefix for Grand Theft Auto: San Andreas in $HOME/.steam/steam/steamapps/compatdata/12120/pfx. Then you need to run winecfg with that path:
WINEPREFIX="$HOME/.steam/steam/steamapps/compatdata/12120/pfx" winecfg
Select the Libraries tab and fill the combo box with the name of the library you wish to override and hit Add. You can verify that it's been added to the list below with (native, builtin) suffix. Then close the window with the OK button.
Related Wine documentation:
